The canvas is 600x600 in dimension.
Left click to draw a red tree, right click to draw a blue tree.

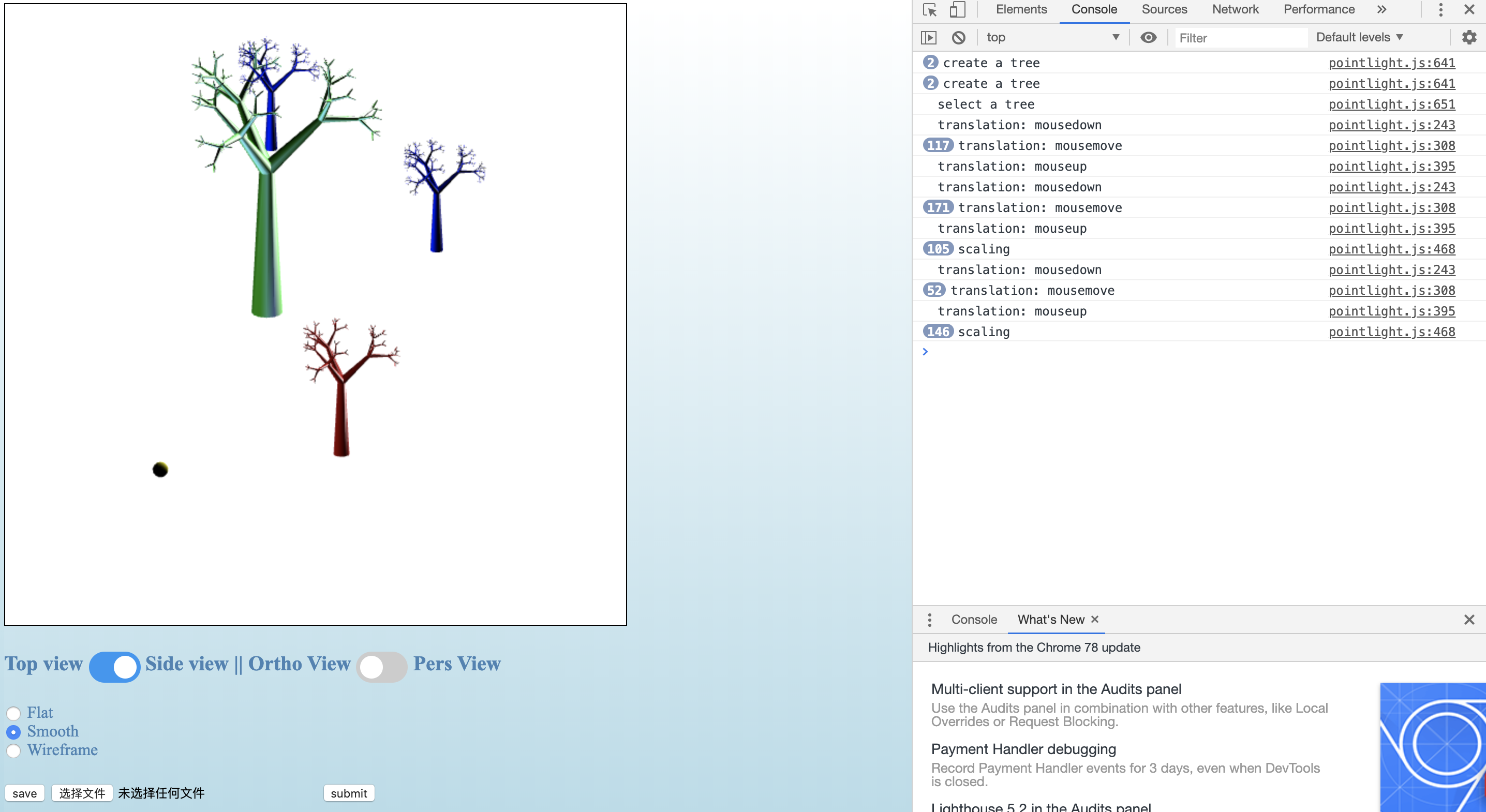

Click on the toggle below canvas to change view from top to side. The second toggle is to switch between orthographic view and perspective view. The checkbox under two toggles is to choose between flat, smooth or wireframe.
Click on the first button to save your current work to file. Click on the second button to load a scene from file. Then click "submit" to see your previous work.
Click on a visible tree to select it. You can only select one tree at a time. When you want to select another tree, or you may want to translate the sphere, you need to do a click on the canvas blank, then click on another tree or the sphere. After a selection, you can translate/rotate/scale the tree if you follow the operation instructions of prog3. You can find these instructions on the course website, or my prog3's guide page:)
There is a second light source, a yellow sphere. It is by default TURNED ON. Click on the sphere to TURN IT OFF. If there is no trees currently being selected, you can use the left buttton and drag your mouse on the canvas to translate the sphere around. This light source add both diffuse and specular components to trees' colors. When you turn it on and drag it around, it shall make your trees a little brighter, especially when you use a side view. To help you know whether the light is on, I also make the sphere a little brighter when you turn it on.
Notice: you can not select a tree and think of doing translation on the sphere at the same time. This may cause misunderstanding and chaos. If you want to do transformations on a tree, you must click on that tree first. If you want to translate the sphere, you must make sure that none of your trees is selected.
All the transformations are cumulative.
I calculate all the coordinates for a whole tree and it's normals and store them in the ./point.js. There are 6 arrays in the ./points.js, namely cylinderl (the tree created by a left click), cylinderr (by a right click), nl (normals for a left click tree under smooth shading), nr (normals for a right one under smooth shading), nnl (normals for a left click under flat shading), nnr (normals for a right click under flat shading). The algorithm for the trees calculation is in ./algorithm.js. It has detailed documentation for you to check.
